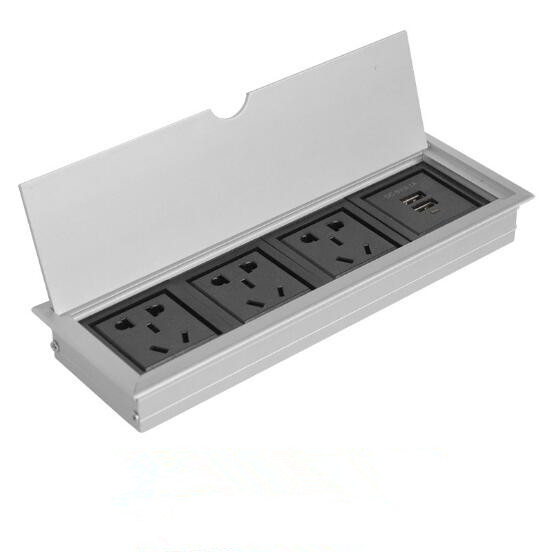

Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box

Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box

Product name:Multimedia Conference Table Socket , 110V-240V Desktop Socket Information Box

Item:WF-SM108-X

Details:

 Desktop socket desktop information box multimedia conference socket office socket



Model Number WF-SM108-X
Brand Name WIFOR
Type Tabletop Socket, tabletop socket
Grounding Standard Grounding
Rated Voltage 110V-240V
Rated Current 10A
Application Residential / General-Purpose
color brushed black,brushed silver,sparkle silver,matte
configeration Module combination can be customized
Material Copper/Aluminum Alloy
weight 1.2kg
Working tempe -20~60°C
operation hum <=80%

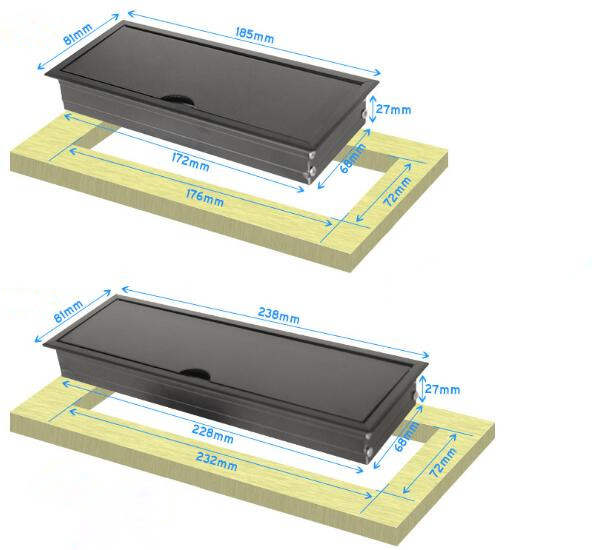

cut size 238*81mm
Panel size 232*72mm



Specification:


1. High quality and anti-dusty;


2. Anti-pinch function: when the tabletop socket is turning, if there is something come and stay on the connector, the socket will turn back to the last position.



3. Easy to use: two switches on the panel, open and closure.



4. When the tabletop socket is not being used, you can close it with the buttom on panel to keep it anti-dusty, and the table tiny.

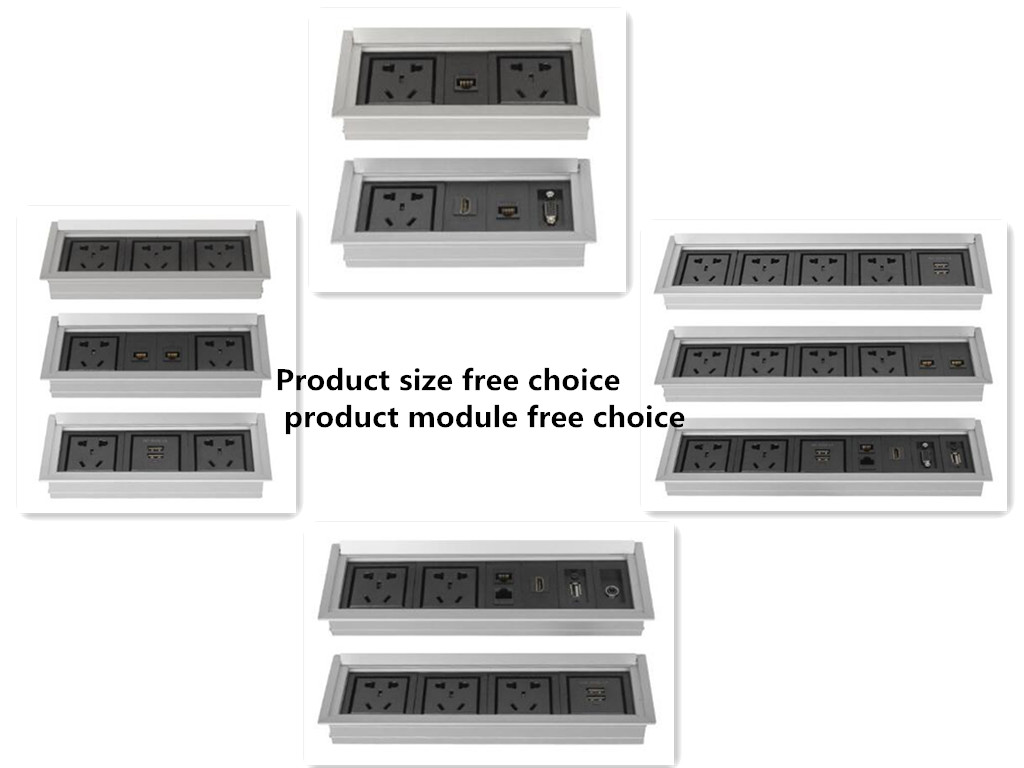

5. The modules can be change freely as you need;

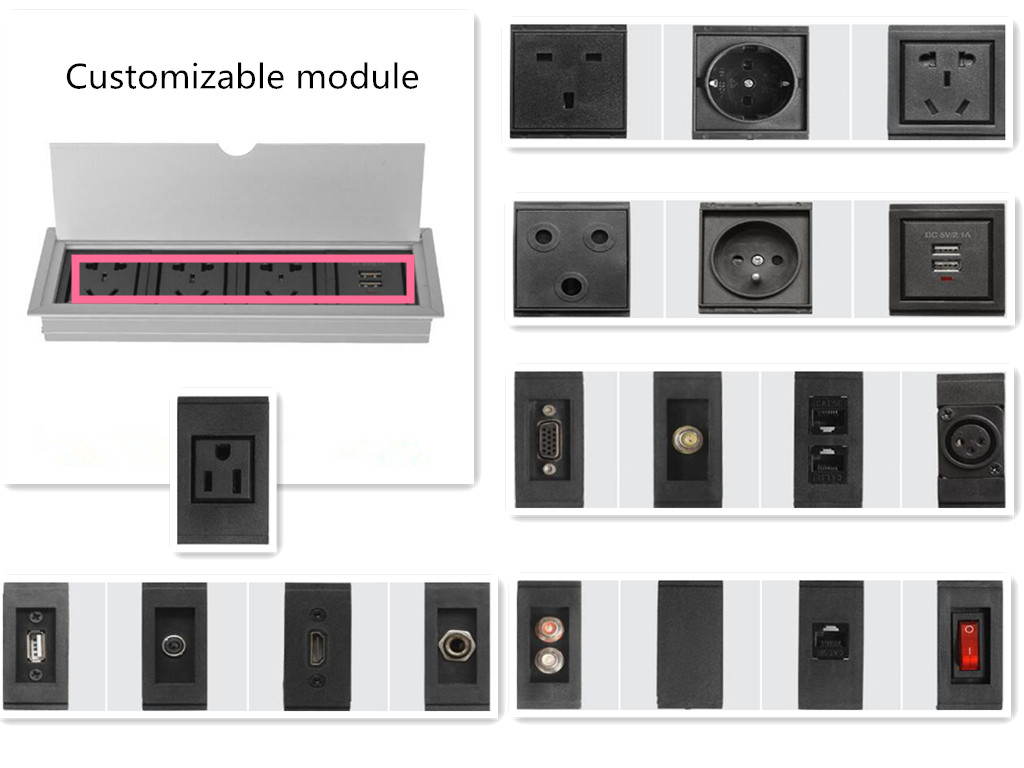

6. Available connectors: EURO power, Schuko power, French power, USA power, UK power, Australia power, South Africa power, international power, 3.5 audio, Dual-audio, video, rj11, rj45, MIC, HDMI, USB, VGA, XLR, RCA etc;



7. Direct factory price with OEM service



Instruction


Motorized Series rotatable tabletop socket is mainly used in advanced office, hotel and home, training room, lecture room. Tabletop socket could be used with other installation surrounding together. When power with the desktop power socket, the indicator light is power on, product come to working sation. Press the up/ down switch, all the multi-functional sockets could be rotate 180 degree to whatever position as needed. All configuration on desktop socket could be hidden under table if unused and would be rotating into the tabletop by automatically.



use


Desktop sockets meet the requirements of a variety of audio and video applications. It is used for fixed installation in an environment, such as a conference room conference room, command and control center console.
It can be installed on a partition wall, floor, or tabletop, so it can be completely hidden in the whole environment. It is fast and professional when used. When it is not in use, it is hidden from the line of sight and easy to manage. Suitable for conference tables, furniture or other occasions.



Install


1: After the multi-function port box is opened, the power cable and various data lines can be connected;


2: Water seepage and knocking are not allowed;


3: It should not be installed outdoors;


4: Ground wire is required.
