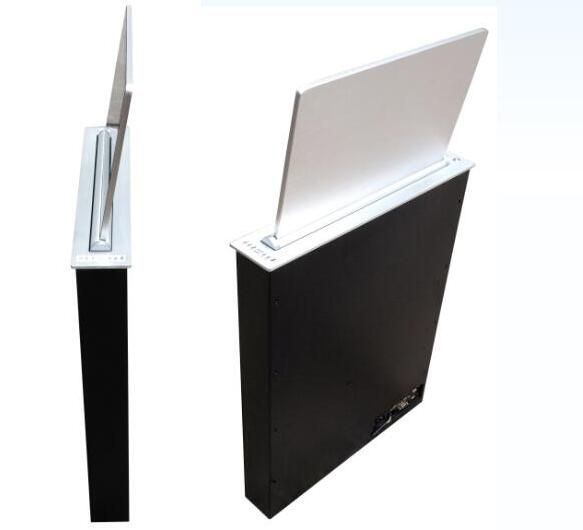

Custom size video conference system hd 1080 Lcd Monitor Lift Mechanism System

High-end conference office luxury system

Ultra-thin HD screen parameters

Screen ratio: 16:9 (widescreen)

Screen resolution: 1920*1080

Backlight type: LED

Brightness: 300cd/m2

Viewing angle: 45/45/15/35 (left/right/up/down)

Contrast: 600 : 1 (Typ.)

LVDS signal line, VGA driver board

Video interface: standard VGA interface (optional HDMI, DVI)

Frame material: aluminum alloy / IPS HD hard screen

Display size: 435 length × 265 width × 11.8 thickness mm

Touch screen parameters:

Transmissive capacitive screen supports 10-point touch, adopts Taiwan EXC3000 control chip, stable and reliable touch sensitive, computer connection mode USB or RS232, touch screen transmittance >90%, surface hardness 6H, structure GG, drive mode COB, reaction time < 10ms, reading speed 10PT: 80Hz, antistatic. Contact discharge 4KV, maximum operating frequency 100 MHz, touch life >300,000,000times, operating temperature -30 °C ~ +75 °C, humidity 90% at 60 °C.

Features

1. It adopts double linear bearing double polished rod guide rail, which is smooth and unobstructed, without sloshing, no jitter, and durable.

2, using the British famous brand SYKES gear shaping machine to produce precision racks, single gear single rack lifting principle, lifting fast and stable.

3, select 60KTYZ silent motor, CE certification; strong stability. Good shock resistance. No noise.

4, the rotation of the shaft, to ensure that the product streamline movement is beautiful, while equipped with a very mainstream touch HD screen,

strong and outstanding, beyond imagination.

5. Photoelectric touch switches equipped with full Chinese logo, rising, falling, pausing, front elevation and rear elevation.

6. Stand-alone use and centralized control through central control, support wireless network control RS232, RS485.

Lift product features

1. During the rising of the LCD screen, the decorative panel automatically opens, and the LCD screen stands upright from the desktop and automatically turns on the power.

2, automatic angle adjustment, the LCD screen automatically adjusts to the upright state when falling, self-breaking power supply.

3, the LCD screen power supply automatically cuts off and begins to drop, the LCD screen completely drops the decorative panel automatically.

Product parameters
