Description

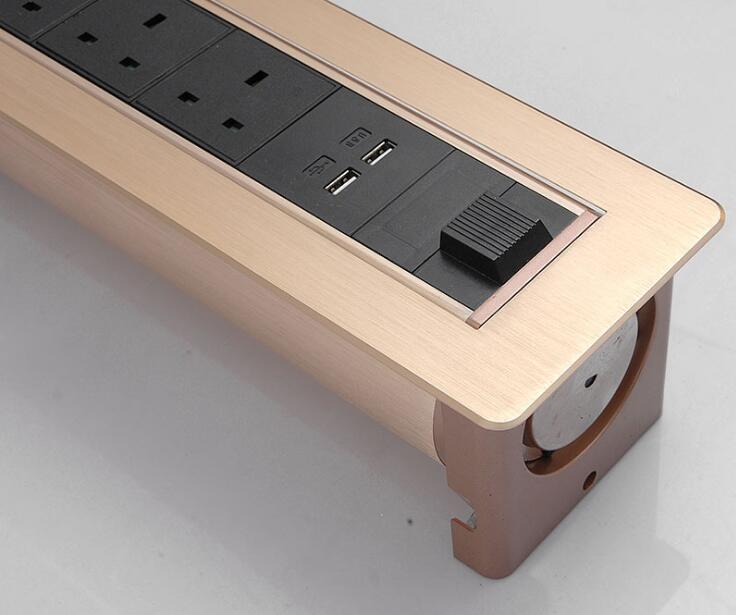

All aluminum CNC finishing box

Adopting 5mm full aluminum CNC finishing, no seams, overall beautiful, sturdy and durable, electric flip open, with anti-pinch, wire clamping function, with power overload protection, safe and reliable

Electric flip photoelectric detecting device

When any one of the sockets is in use, the electric rotation control button is disabled; when the socket is rotating, any object blocks the launching device, and the click stops to ensure that the socket does not turn off due to the wrong operation, causing the wire to be clamped and pinched. Accidents, ensuring safety;
When not using any socket, you can press Flip, rotate 180, hide all jacks, so it is safer and more durable; when the socket is opened, no plug-in is used, and the socket is automatically rotated and closed after five minutes.

Product Features

1>The electric flip integrated cable box usually turns the socket interface 180° over the hidden socket through the control flip button on the socket panel when the socket interface is not used, so that the desktop can be beautiful and decorative. Better protection of the internal metal conductive structure of the socket interface. Make the socket more durable and extend the life of the socket.
2> The electric flip integrated cable box is equipped with photoelectric (respectively transmitting and receiving) detecting devices at the left and right ends of the interface. When any one of the sockets is not pulled out during use, the touch electric flip control button is invalid, and the electric flip cable box cannot be flipped. , to ensure that the socket will not be twisted due to misoperation. When the cable box interface is not used, pull out all the plugs, press the red return flip button, rotate 180°, hide all the cable box interfaces, and return the socket to the aluminum alloy panel to stop automatically and keep it flush with the desktop.

Product Usageuse

1: VLM electric flip integrated line box is mainly used for meeting office table to connect to the Internet, the information interface supporting equipment of the conference system.
2: For the modern office conference Internet information age information receiving, sending, processing data, video conferencing information integrated into a countertop office conference electric flip integrated line box.
3: can be equipped with multi-function power interface, eight-core network cable interface, four-core telephone interface, 3.5 audio interface, 6.35 microphone interface, VGA signal interface, USB interface, HDMI high-definition interface, AV audio and video interface and other extended transfer devices
4: This product is installed in the furniture office countertop for easy use.

Instruction


Motorized Series rotatable tabletop socket is mainly used in advanced office, hotel and home, training room, lecture room. Tabletop socket could be used with other installation surrounding together. When power with the desktop power socket, the indicator light is power on, product come to working sation. Press the up/ down switch, all the multi-functional sockets could be rotate 180 degree to whatever position as needed. All configuration on desktop socket could be hidden under table if unused and would be rotating into the tabletop by automatically.

Specification


1. High quality and anti-dusty;
2. Anti-pinch function: when the tabletop socket is turning, if there is something come and stay on the connector, the socket will turn back to the last position.

3. Easy to use: two switches on the panel, open and closure.

4. When the tabletop socket is not being used, you can close it with the buttom on panel to keep it anti-dusty, and the table tiny.

5. The modules can be change freely as you need;

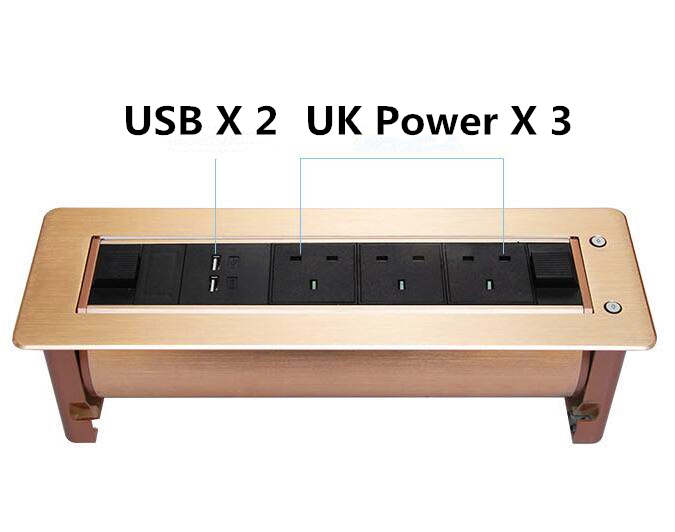

6. Available connectors: EURO power, Schuko power, French power, USA power, UK power, Australia power, South Africa power, international power, 3.5 audio, Dual-audio, video, rj11, rj45, MIC, HDMI, USB, VGA, XLR, RCA etc;

7. Direct factory price with OEM service
